Multi Colour Non Woven Bag Printing Machine

Three Colour non woven bag printing machine is highly demanded for printing of any kind of multi Colour. A fine and crisp quality can be achieved. Printing cost is very cheap and the machine price is affordable. These multicoloured printed carry bag has become a latest trend in the shopping malls and retails stores.

Multi Colour Non Woven Bag Printing Machine  is revolutionary product, this machine can print multi colour bags in very economic cost. Now, no need to spend excessive money on four colour printing machine when you can get better quality of printing in just three colour machine.

Sahil Graphics has developed next generation Multi Colour Non Woven Bag Printing Machine (Non woven D-cut bag Printing Machines) to offer high quality print results on Non Woven Cloth bags.

Sahil Multi Colour Non woven Bag to Bag printing machine is compact & has an efficient design. Sahil non woven fabric offset printing machines have been specially made for quick printing to meet the requirement for quality short/long run jobs on non-woven bags & fabrics. Utilizing technology of printing non woven D Cut bags with vacuum developed by Sahil’s own R & D department the non-woven bag to bag printing machines have proved their worth not only in India but abroad as well.

(SIZES:  16”X22” & 18”X24.5”)

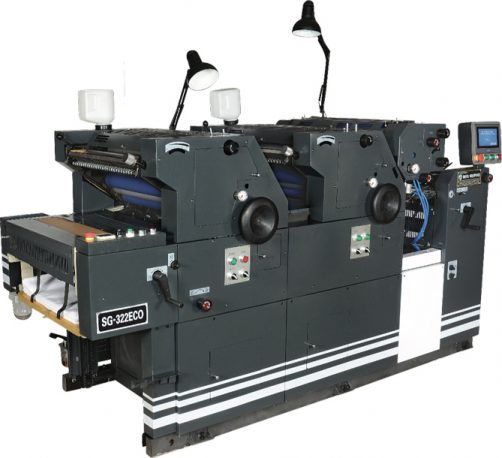

Multi color non woven bag printing machine

Bag Samples


Key Features

  • 2-in-1 model machine suitable to print multi colour (4 colour looks) in single pass.
  • Touch Screen with Pneumatic impression system with Air Compressor.
  • Print halftone jobs, picture images and background withdecent print quality on Non-Woven Bags.
  • Chrome-plated cylinders, stainless steel water fountain roller, making the machines Long use life.
  • Hard & Ground Gears.
  • Bearing type pull side lay for Micro Registration Settings.
  • Three Cylinder design with Chain delivery.
  • Front plate loading system.
  • Exhaust Fan for quick Drying.
  • RE-set digital copy counter.
  • Powder spray unit.
  • Centralized Oil Lubrication System with pump.
  • Anti-Static Charger to remove Magnet from printing stock.
  • Double-Sheet Detector with Photo electrical Sensor.
  • Skip Feed function is realizable to ensure the ink density.
  • Power supply cut-off while opening delivery guard.
  • Jogger System to Collect the Bags/Papers on Delivery.

Technical Specifications :

Model SG-322 ECO SG-324 ECO
Max.Paper/Bag Size(mm) 406 x 560 457 x 620
Max. Printing Area(mm) 375 x 550 457 x 620
Min.Paper/Bag Size(mm) 125 x 180 180 x 260
Plate Size(0.20-0.28mm) 420 x 560 480 x 620
Blanket Size (mm) 460 x560 505 x 620
Paper thickness 30-250g/m2 40-250g/m2
Bag Thickness 60-150g/m2 60-150g/m2
Ink Rollers (3 form) 14+10 Rollers 14+10 Rollers
Water Rollers (1 form) 4+3 Rollers 4+3 Rollers
Printing Speed(for Paper) 2000-8000 IPH 2000-7000 IPH
Printing Speed(for Bag) 2000-3000 IPH 2000-3000 IPH
Power Required(single Phase) 2.5 Kw 3.0 Kw
Machine Dimensions(LxWxH) 3200 x 1100 x 1350 3500 x 1200 x 1500
Gross Weight 1700 kg 1900 kg
