LEADER LAMINATED NON WOVEN BOX BAG MAKING MACHINE

We are involved in offering Fully Automatic Leader Laminated Non Woven Box Bag Making Machine that is mainly used for the fabrication of loop handle bags and vet bags. The machine is manufactured in compliance with set industrial standards and is appreciated for reliability and efficiency. The machine is automatically controlled with PLC panel and is suitable for making various types of non woven bags in different shapes and sizes.

LEADER next generation is the top-level non woven bag making machine in the world.

Sahil Graphics’s Leader Laminated Non Woven Box Bag Making Machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment. It can directly forming Non Woven Box Bags with loop handle automatically and no need to reverse to get finished box bag.

16th Generation Leader Non Woven Laminated Box Bag Making Machine

Leader Box Bag Making Machine

17th Generation (Vertical Fold) Leader Laminated Non Woven Box Bag Making Machine

Leader Box Bag Making Machine

17th Generation Leader Non Woven Laminated Box Bag Making Machine with 30cm Gusset

Leader Box Bag Making Machine

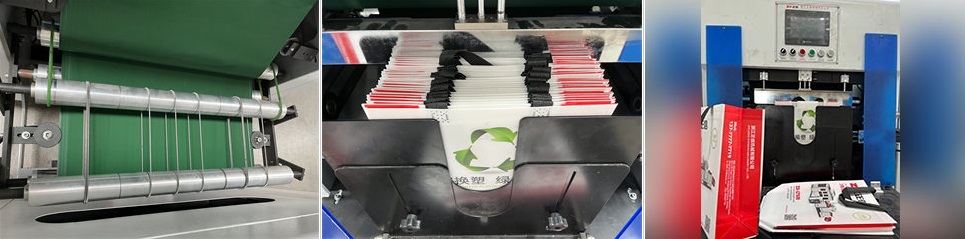

Manufacturing Process

These bags are shaped in one time with less labor force, high efficiency and low production cost. It only needs two persons, thus the labor force cost is largely saved.

This non-woven bag producing machine with the best competitive advantage in the market. The bag manufactured through this machine can take weight up-to 20 kg.

Technical Specification

Model	ZX-LT500/ ZX-LT500V
Suitable material	Rolls of pp spunbond/PLA Spunbond/RPET Spunbond/RPET stichbond
Material width	550-1160mm
Material thickness	70-120GSM
Bag height	200-450mm
Bag width	135-500mm
Compressed Air Pressure	1.0MPa
Max power	45KW
Speed	45-100pc/min
Bag gusset	80-200mm
Machine weight	10500kg APPROX. V model -11500kg
Handle size	380-600mm
Power supply	380V/50HZ/3P
Dimension(LWH)	1100 x 6850 x 2600
