Sheet-feeding Paper Bag Making Machine

The Sheet-feeding Paper Bag Making Machine (SG1200C-430) paper bag producing machine is suitable for high volume paper bag production, using blank sheet or creased paper. Equipped with PLC control, frequency controlled speed adjustment as well as remote control.

Automatic, non-stop feeding register, side gluing, gusset forming, bottom folding and pasting, automatic collection and counting – all in one uninterrupted work-flow.Optional with compaction and output unit.

Standard with environmentally friendly water based cold glue system. Nordson hot-melt gluing unit for thicker paper as option available. Tube edge pasting alternatively on wide or small side. Capable to produce both, front- and back joint edge – providing a wide range of different bag types, whatever your customers’ needs or specific requirements. Stable operating at high speeds ensures high quality paper bags, finished on time.

Sheet feeding Paper Bag Making Machine SG 1200C-430

Salient Features

  • Pre-stack feeder.
  • Screw and adjusting bottom clip system.
  • Font & Side guides positioning system.
  • Bottom catch bag roller & alert system.
  • Hand crank creasing system.
  • M side gusset making system.
  • Wide- or small side gluing system.
  • Blocked paper checking system.

Technical Parameters

Input Max Size (Sheet) 1200X600 mm
Input Min Size (Sheet) 560X320 mm
Bottom Width 80-175 mm
Bag Width 180-430 mm
Sheet Weight 140-300 g
Speed 50-80PCS/Min
Machine Dimensions 15150 x 2400 x 1800 mm
Glue Type Holt Melt + Water Base
Machine Weight (Approx.) 12 T

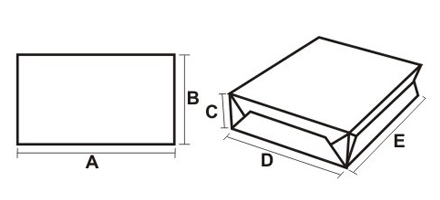

Suitable Paper Size

Max. Size 1200 600 175 430 500 70
Min. Size 540 320 80 180 250 30

Art paper, white board and ivory board need lamination, over 160gsm need die-cutting in advance. 140/150gsm Kraft paper and 150/157gsm art paper no need to die-cutting.

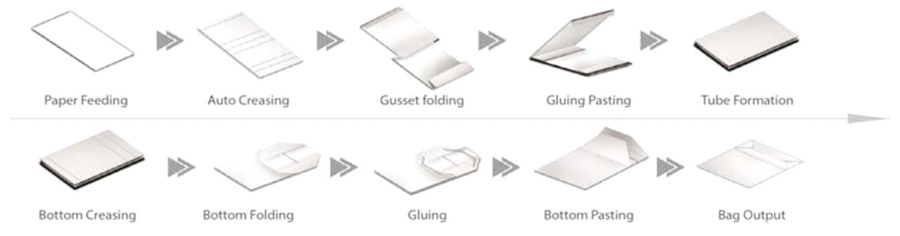

Technical Process

Technical Process

Compaction Output Unit:

Compaction in layers by overlapping of bags
Pneumatic pressure
Ensures fast and strong adhesion and compaction
Operator friendly collection of output bags.

Compaction Output Unit

Nordson Hot-melt gluing system:

Ensures high quality, fast and strong adhesion
In addition to water soluble cold glue system
for gluing of thicker Paper.

Nordson Hot-melt gluing system
